Camera Monitor System ProViu® Mirror
Better visibility with digital wing mirror
First off-the-shelf camera monitor system that can be fully integrated and substitutes the classic wing mirror with images in HD quality.
Discover our ProViu® Mirror Camera Monitor System

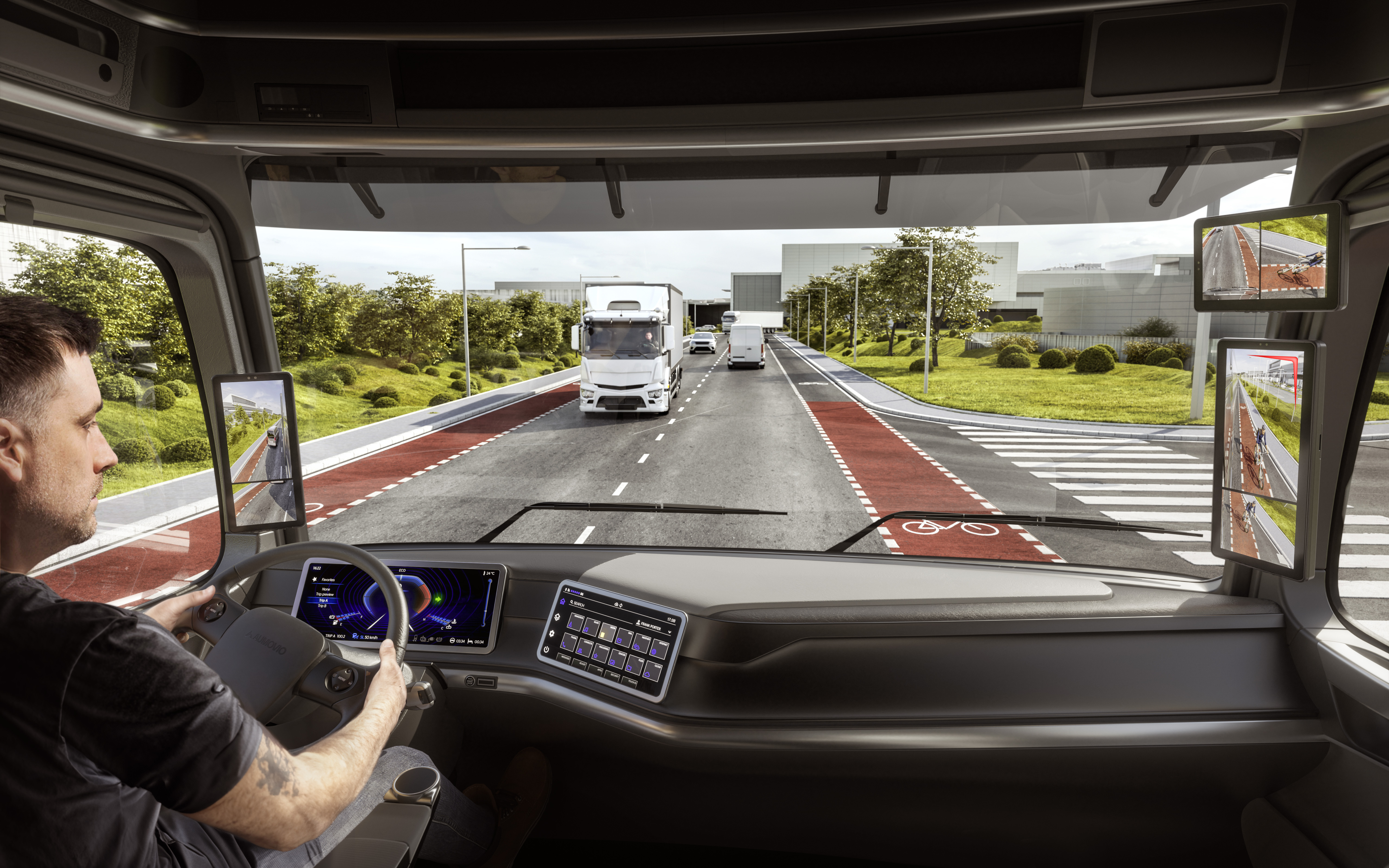

Bus drivers and other commercial vehicle operators need excellent all-around visibility in all weather and lighting conditions, especially in blind spots. The fully digital ProViu® Mirror camera-monitor system replaces conventional Class II/IV exterior mirrors with HD images and can optionally cover Class V and VI as well. With its purely digital single-camera system, the ProViu® Mirror camera-monitor system can replace conventional Class II/IV exterior mirrors with a high frame rate and image resolution, thus supporting driver assistance systems such as reversing mode, turn assist, and distance lines.
Fleet operators also benefit from lower operating costs, as repair costs are reduced and the elimination of a physical exterior mirror improves aerodynamics, resulting in lower fuel consumption and reduced noise.
The benefits of the ProViu®Mirror Camera Monitor System at a glance
- State of the art: First LVDS camera monitor system to substitute wing mirrors in commercial and special vehicles
- Image quality: 3-megapixel HDR camera with 60fps frame rate ensures the best image quality even in poor lighting conditions
- Simplicity: One camera system for mirror class II/IV
- Safety: Blind spots are eliminated and enable safe and easy maneuvering in confined spaces

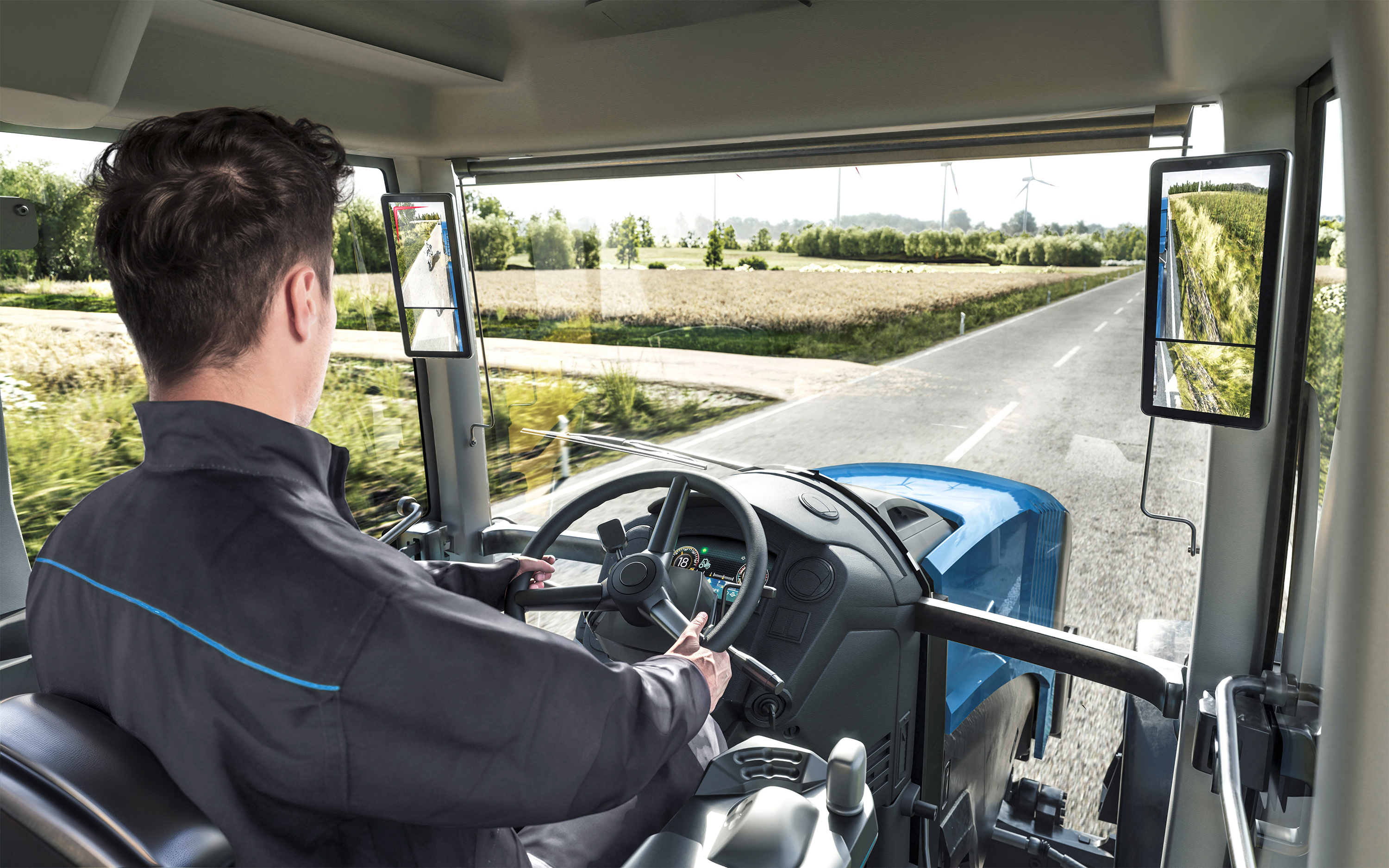

- Robustness: even in challenging working environments like agriculture or construction
- Size: small components enable better integration on the vehicle
- Costs: Low repair and damage costs compared to classic wing mirrors
- Flexibility: modular camera monitor system that can be used on different vehicles and is easily installed and calibrated using a configuration tool.
- Temperature: heated cameras in cold temperatures
- Options: display sizes available in 12.3″ and 14.5”, mirror class V and VI optionally available, displayed together on one display or on 2 separate 10.1″ displays

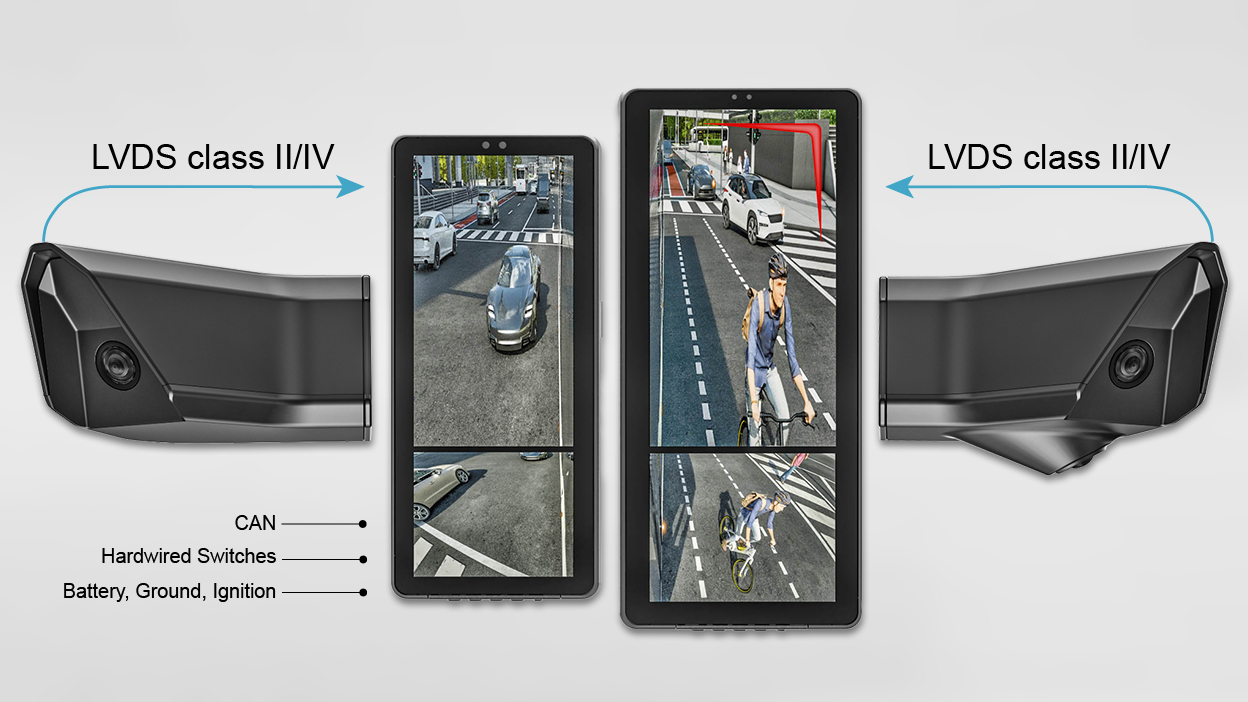

Technical Specifications for Display Class II/IV
- Size: 12.3″ or 14.5″
- Viewing angle up/down, left/right: typ. 88 degrees, minimum 80 degrees
- Brightness: min. 800 cd/m²
- Contrast ratio: 1000:1
- Display ratio: 8:3
- Resolution: 1920 x 750 pixel (RGB)
- Frame rate: 60 fps
- Power supply: 9-32V
- Operating temperature: -30 to -70 °Celsius
- Storage temperature: -40 to -85 °Celsius

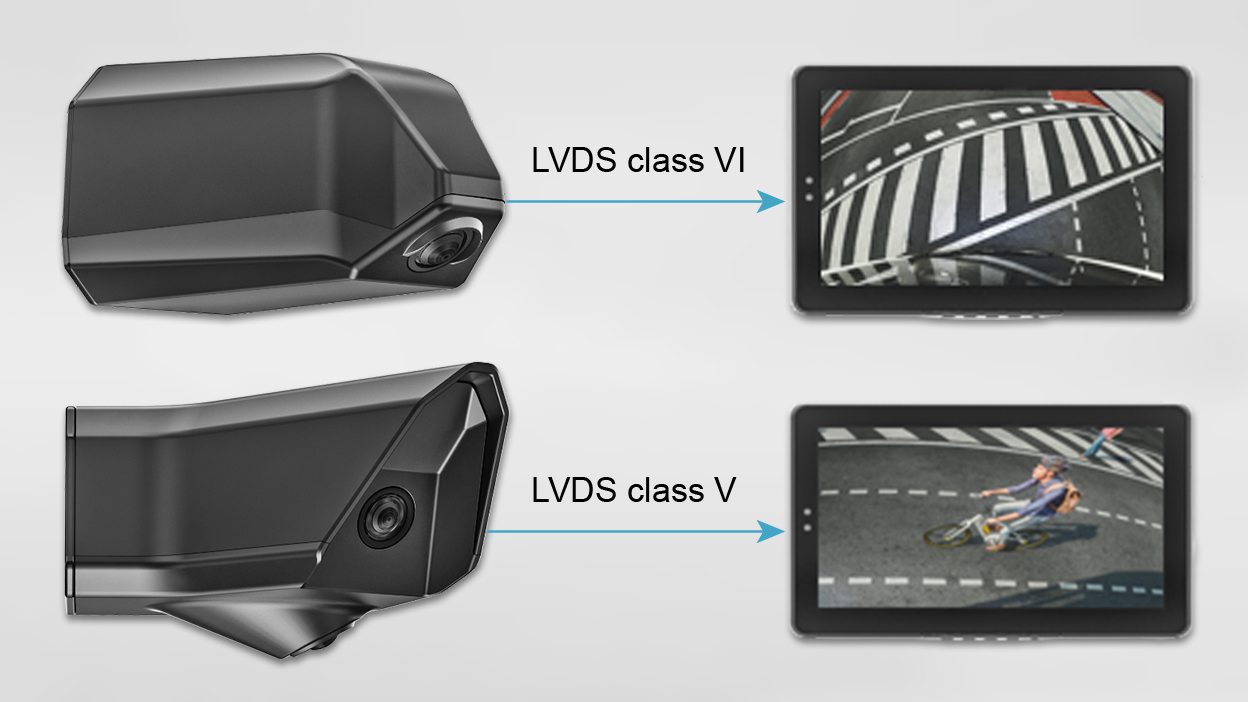

Technical Specifications for Display Class V/VI
- Size: 10″
- Viewing angle up/down, left/right: typ. 88 degrees, minimum 80 degrees
- Brightness: min. 800 cd/m²
- Contrast ratio: 1000:1
- Display ratio: 16:9
- Resolution: 1280 x 720 pixel
- Frame rate: 60 fps
- Power supply: 9-32V
- Operating temperature: -30 to -70 °Celsius
- Storage temperature: -40 to -85 °Celsius

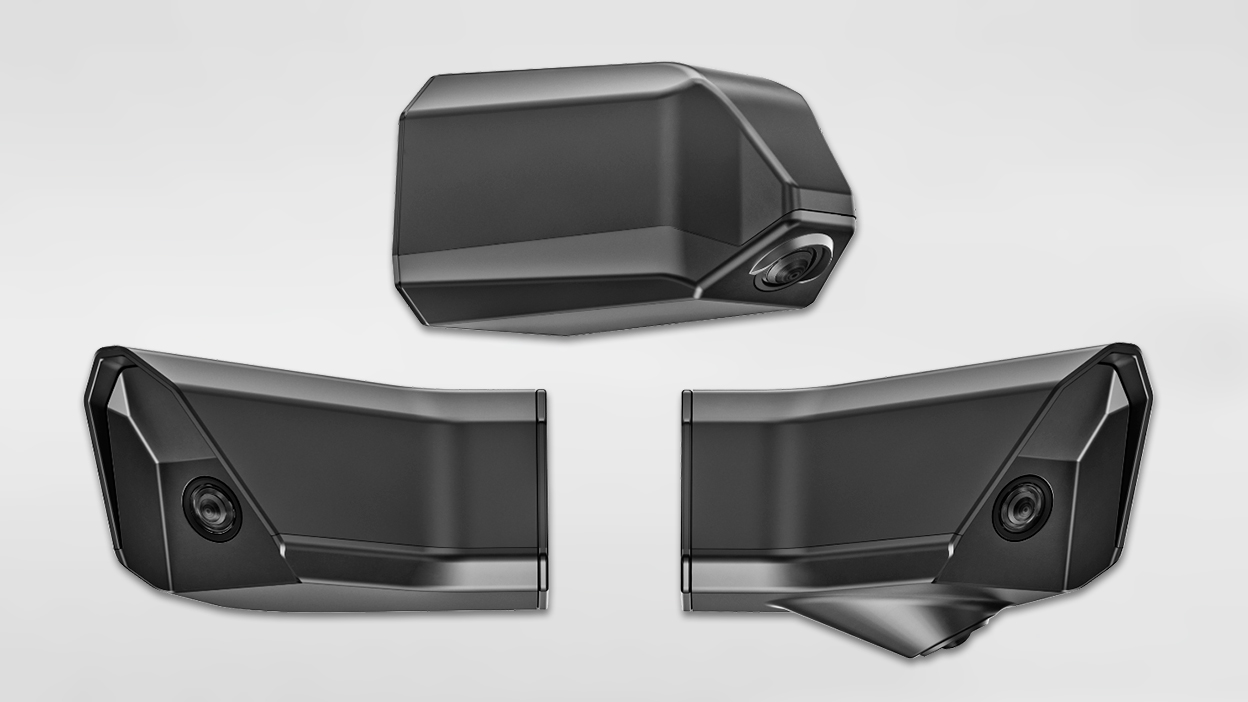

Technical Specifications for Cameras
- Resolution: 1920 x 1536 pixel
- FOV: H*V>90°*68° (Before distortion correction) (II/IV), H*V>100°*80° (Before distortion correction) (V/VI)
- Frame rate*: 60 fps
- Dynamic range: 120db
- Operating and storage temperature; -30 to -78 °Celsius
*If class V and VI are used on one screen the frame rate for class VI is reduced to 30fps.
Additional Functions
Automatic Brightness
The camera monitor system automatically adjusts the screen brightness based on ambient brightness detected by light sensing. The driver can adjust base brightness level to his liking.
LFM LED Flicker Management
The camera monitor system suppresses LED flicker to ensure image clarity.
ParkAssist
When receiving a reverse signal, the camera monitor system’s image extends to improve parking visibility and show park assist line.
Turning assist
When receiving a turn signal, the camera monitor system automatically expands the field of vision on the turning side and the camera turn signal lights up automatically.
BSIS/Blindspot Detection
A BSIS or Blindspot detection can be send by CAN to the camera monitor system and will be displayed on the driver monitors.
Heating/Defrosting
The camera module is equipped with a built-in heating pad to reduce the impact of rainy, icy, and snowy environments on the image.
Display Angle Adjustment
The display range can be adjusted through the buttons to meet the different needs of users.
ProViu 360 Mirror
Safety
Better protection against blows/impacts on the side Mirror
Reduced operational cost
Fuel efficiency, less noise due to reduced windward area.
Better Visibility
Improved blind spot detection and 360 degree visibility.
All Weather
Improved vision in all weather conditions and better protection from staining and dirt.
