Better overview thanks to the ProViu®360 surround-view system
Whether maneuvering on confusing ramps, approaching busy stops, reversing with overhanging construction machinery, or taxiing between narrow warehouse racks – the ProViu®360 surround-view system always ensures perfect visibility.
Discover our ProViu®360 surround-view System
More overview and safety in challenging working Environments

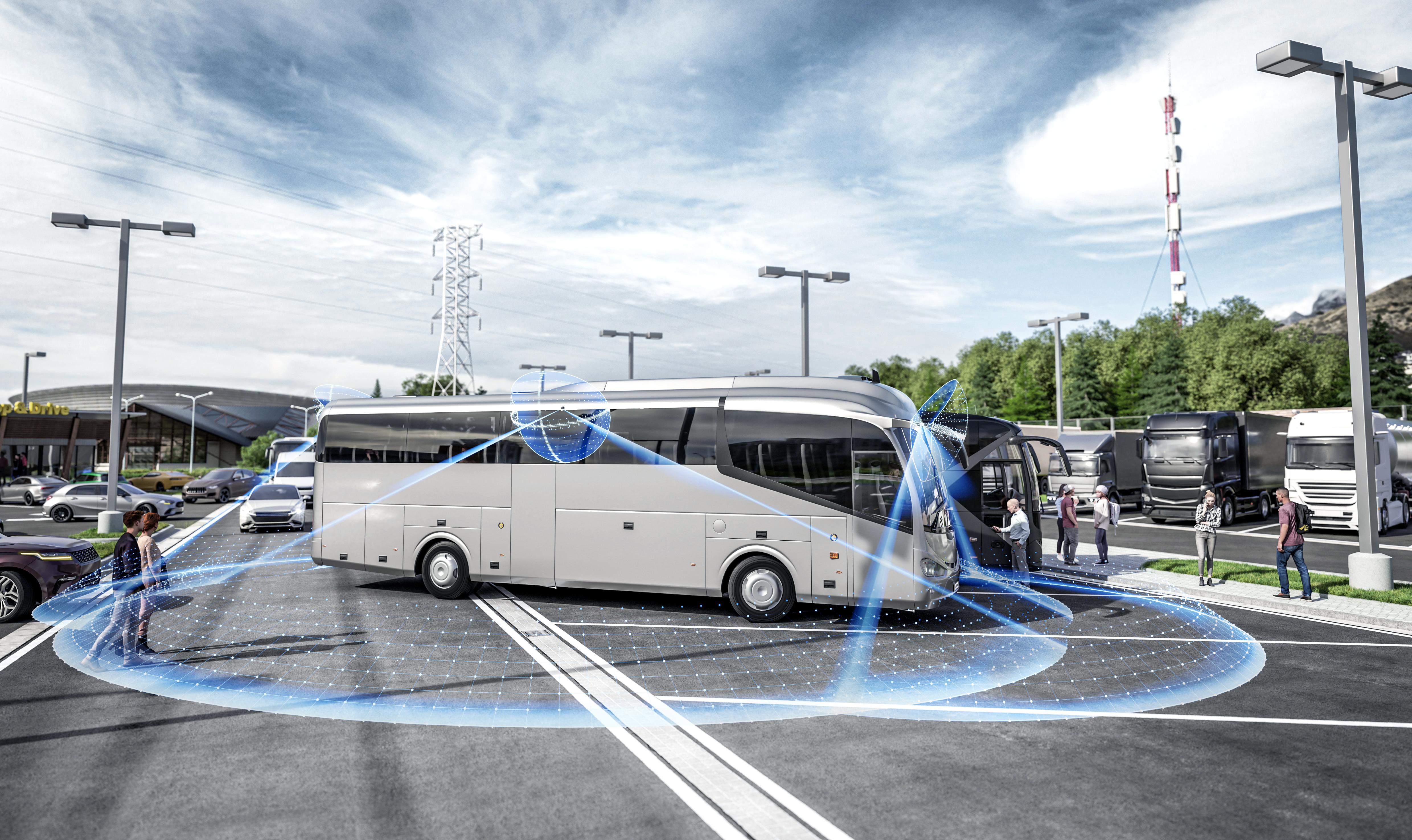

Human error behind the wheel cannot always be avoided – especially for those for whom driving is part of their job. Therefore, complete all-around visibility is essential. The ProViu®360 Surround View system uses four cameras to create a seamless bird's-eye view, that helps prevent such avoidable incidents. This gives drivers a 360° view, minimizing blind spots and revealing people and objects that mirrors cannot detect. Various single, surround, and dynamic 3D views, all controllable via touch, significantly simplify maneuvering.

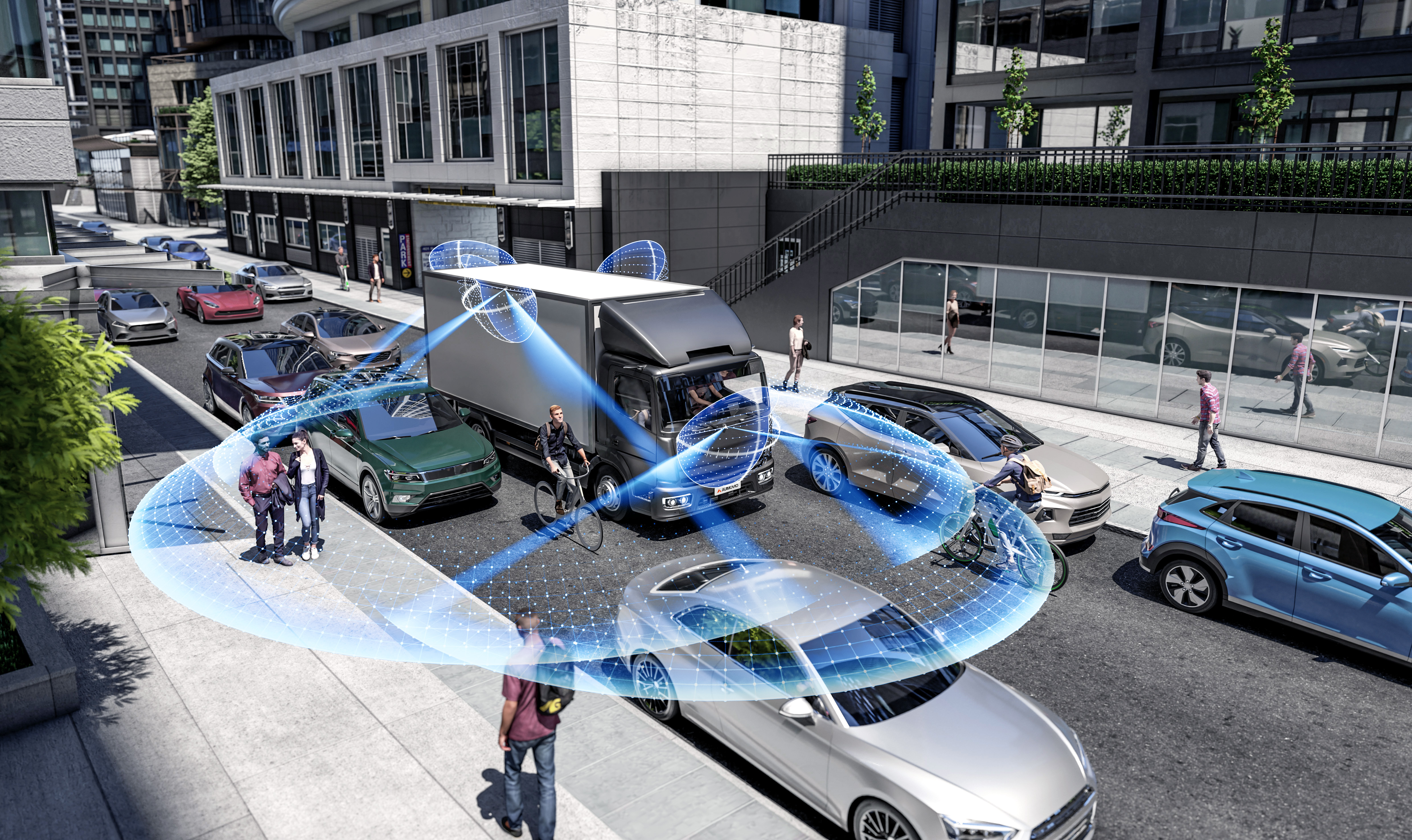

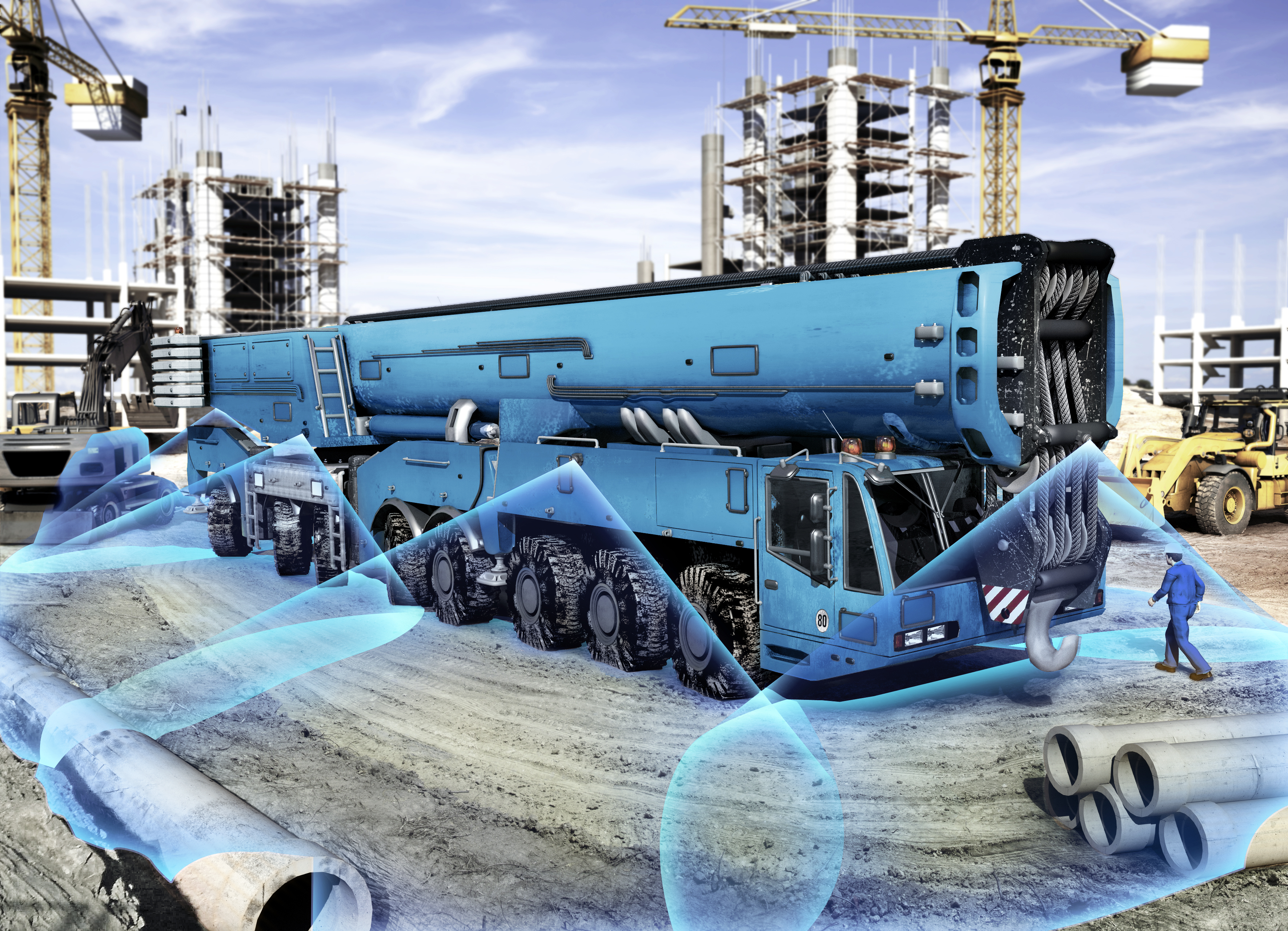

Whether leisure or special vehicle, commercial or industrial use, the ProViu®360 surround-view system simplifies vehicle operation, especially in critical situations, for example in dense city traffic, in narrow loading/unloading areas, in cramped factory yards, on busy construction sites or at campsites.
The benefits of our ProViu®360 surround-view system at a glance
- HD surround-view system for commercial and special vehicles
- 4 megapixel HDR cameras ensure the best image quality even in poor lighting conditions
- Super wide-angle cameras take pictures of the surroundings, which are merged and scaled by the system – creating a perfect all-round view of the vehicle from a bird's eye perspective in real time
- Blind spots are eliminated, enabling safe and easy maneuvering in tight spaces
- Seamless image transitions thanks to complex algorithms
- The screen content can be individually configured by the installation partner and shows a view tailored to the driver's needs
- Robust system developed for challenging working environments
- Small component size enables better integration on the vehicle
- Lower repair and damage costs for more efficiency and less downtime
Technical Specifications

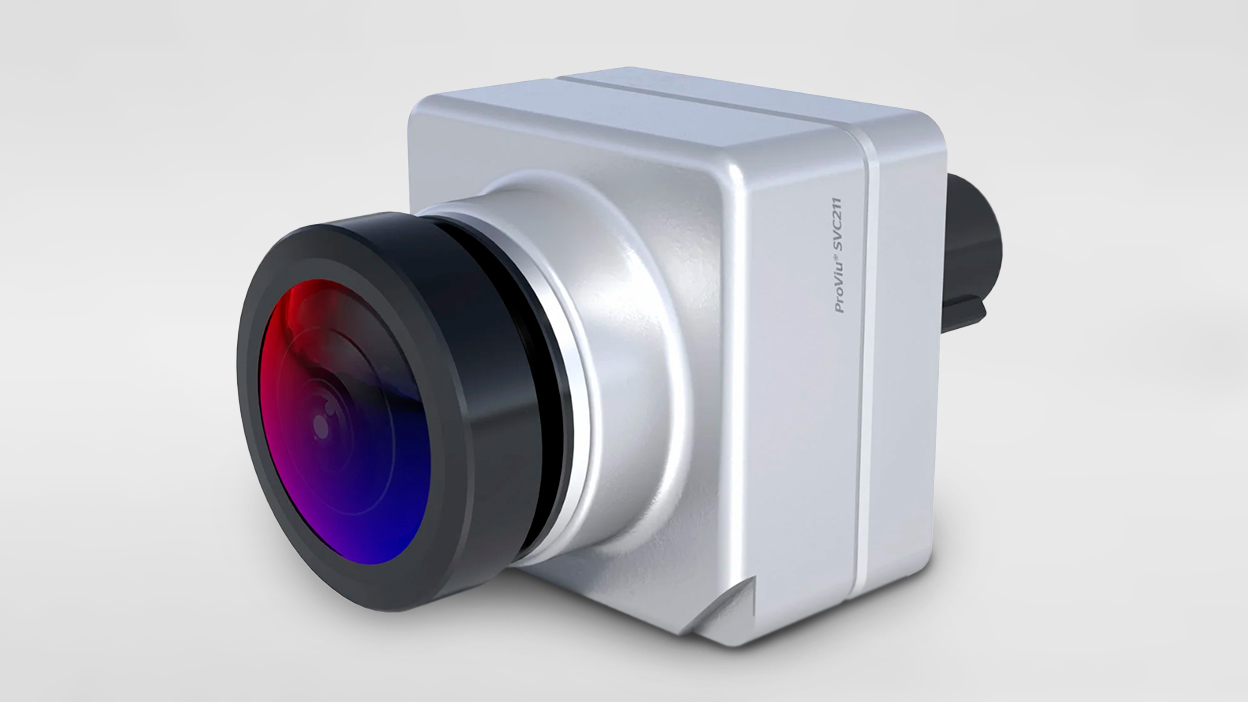

- Cameras: 4 x High-Dynamic Range (HDR)
- Camera resolution: 1.3 megapixels
- Horizontal imaging radius: 194 degree
- HD touch display: 10.1“
- Image resolution: 1280 x 720 (16:9) pixels
- Brightness: 800cd/m2 typ
- Contrast: 600:1
- Display technology: Optical Bonding
- Protection class: IP 67
Additional features

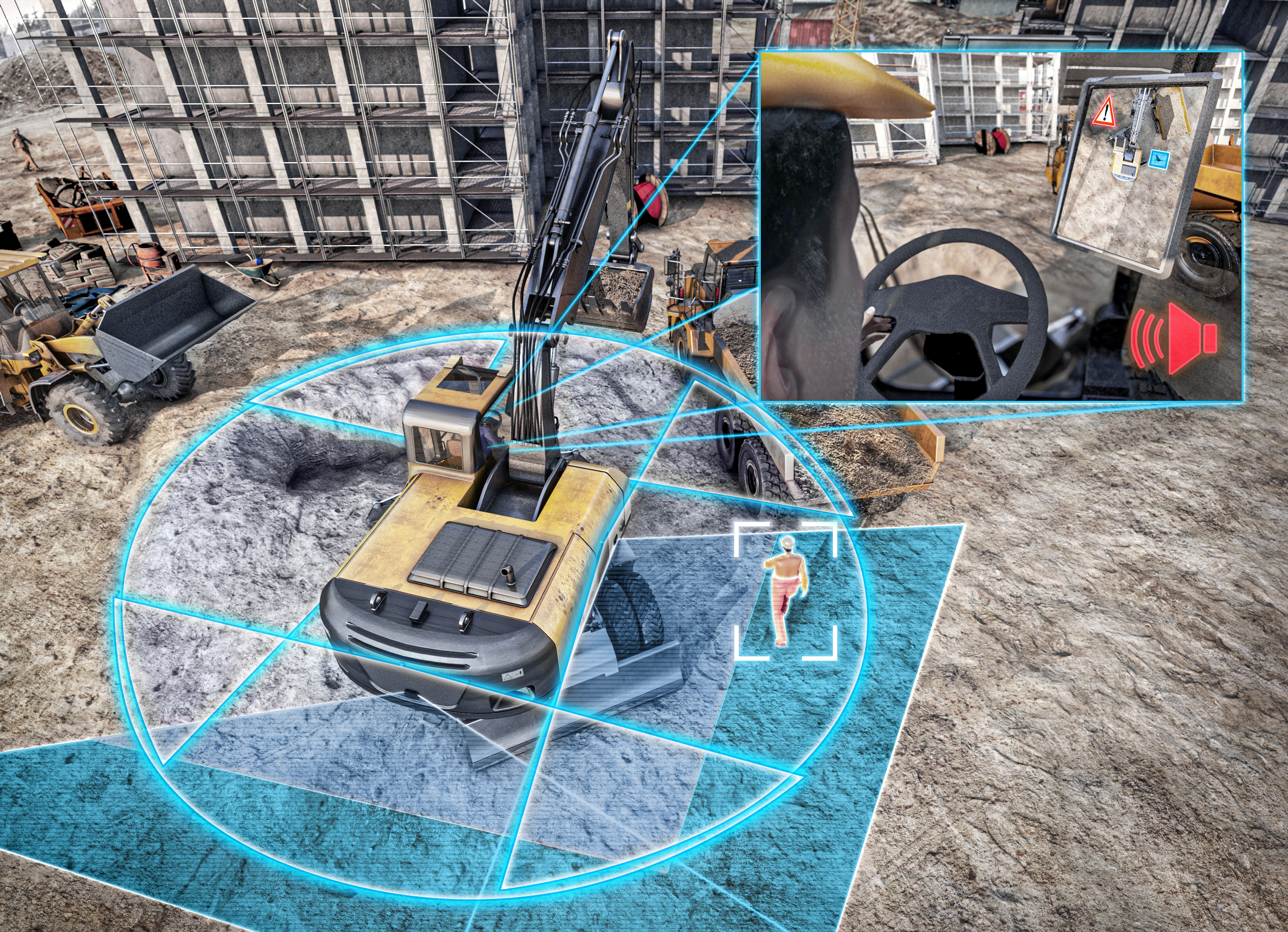

Pedestrian Detection
This optional function detects people in the vicinity of a vehicle or machine and warns the driver or operator. This means that collisions can be prevented, even in particularly busy environments, such as on a construction site.
Clean Camera
With the optional clean camera function, the system monitors itself and indicates when a camera is dirty or does not have a clear view – ensuring reliability at all times.
Transparent Chassis
In the case of particularly expansive vehicles, the Transparent Chassis sends the images of the area in front of the vehicle taken by the front camera to the control unit, which displays the images instead of the vehicle depending on the steering angle and speed, thus enabling a view virtually through the vehicle.
Sensor Fusion
By merging different technologies, larger distances and areas on and around the vehicle can be monitored. Radar sensors can be used to make turning situations safer, and ultrasonic sensors on the vehicle make parking and maneuvering even easier in order to reduce damage and accidents. Merging the video stream and sensor feedback on one HMI reduces the efforts of observation and operation for the driver.
Service - Retrofitting made easy
Our partner in Germany Wüllhorst Fahrzeugbau is at your service for simple retrofitting with the ProViu® 360 surround-view system For partners in other countries, please use the form below to contact us.
